HydroWAV Underwater Signal Analysis Software for Real-Time Multi Domain Underwater Acoustics Measurements
HydroWAV is a high-performance real-time analysis software tool for underwater acoustic measurements using hydrophones. The software provides synchronized time-domain, frequency-domain, and time–frequency visualization to support field measurements, laboratory testing, and research applications. HydroWAV Software is licensed lifetime per computer.
Key Features
- Compatible with Hydrophones and Front-End Devices such as Zoom H1
- Compatible with Windows Operating System
- Mono and Stereo Channel Support
- High Resolution Sampling, incl. 32 bit
- Manual or Automated Recording (Waveform Audio File Format -wav-) and Replaying
- Immediate Screenshots of Full Screen and Time Series, Spectrum and Spectogram
- Real-Time Audio while Recording and Replaying
- FFT Analysis, Total Power, Peak Level and Peak Frequency
- Harmonic Analysis
- Signal Presentation on Time Series, Spectrum and Spectogram
- Immediate Identification of Dominant Noise Sources, Tonal Components and Transients
- Display Measurements in dBFS or Calibrated SPL (dB re 1 µPa)
- Clear Visualization of Time-Varying Acoustic Signatures Using Spectogram Display (Waterfall)
Applications
- Marine Mammal Monitoring
- Environmental Noise Assessment
- Underwater Noise Characterization
- Vessel Radiated Noise Analysis

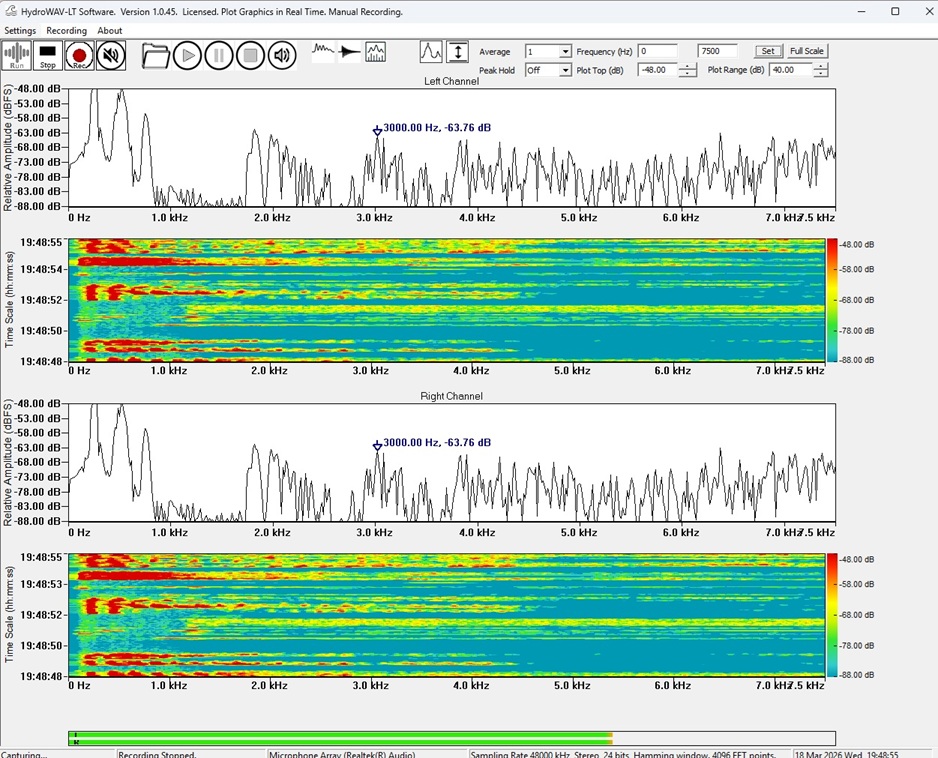

HydroWAV Software, Stereo Spectrum and Spectogram
HydroWAV Software, Stereo, Spectrum

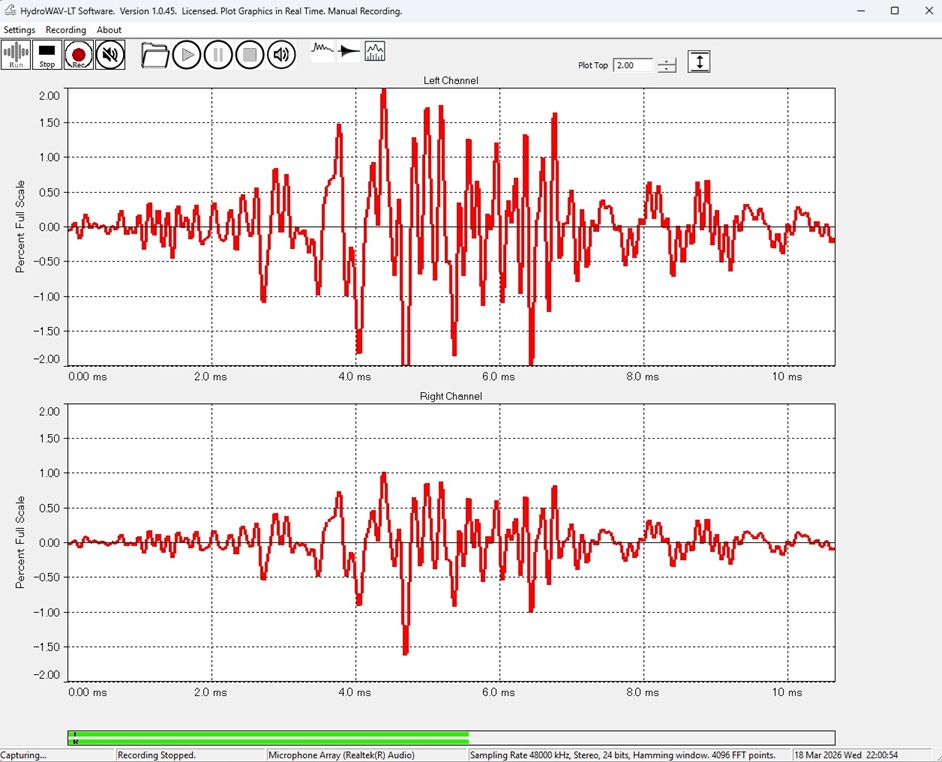

HydroWAV Software, Stereo, Time Series

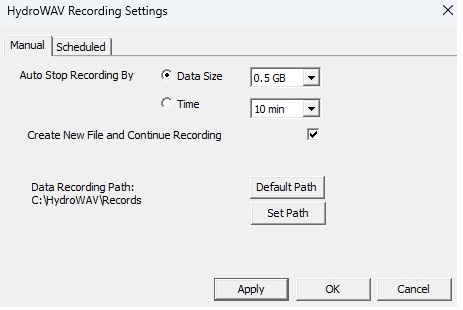

HydroWAV Software, Manual Recording Settings

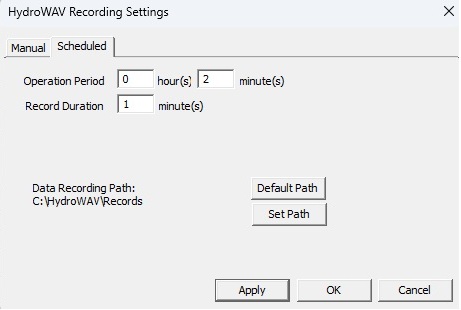

HydroWAV Software, Scheduled Recording Settings

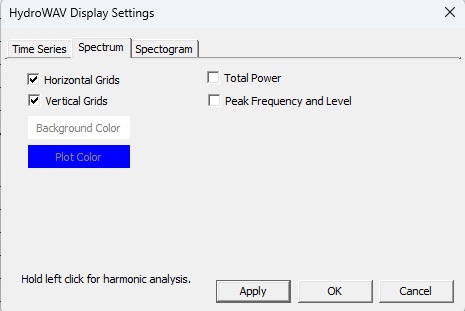

HydroWAV Software, Spectrum DisplaySettings

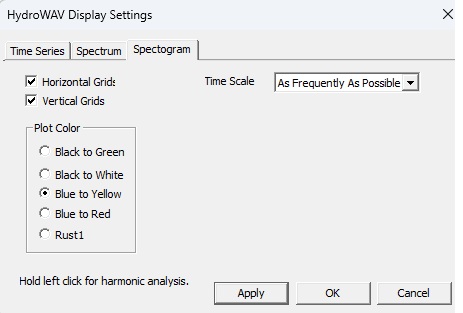

HydroWAV Software, Spectogram DisplaySettings
